6000 Series Aluminum Tubes and Pipe

Item

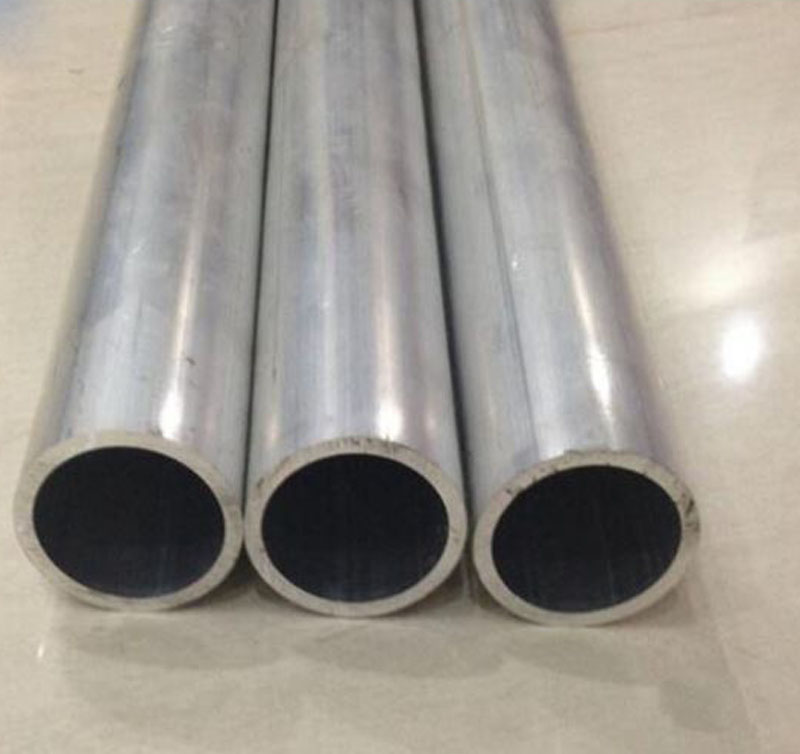

6000 Series 6061 Silver Anodized Seamless Aluminum Tube

Standard

GB/T6893-2000,GB/T4437-2000,ASTM B210M,ASTM B234M,
ASTM B241,JIS H4080-2006

Grade

6A02,6B02,6A51,6101A,6005,6005A,6351,6060,6061,6063,6063A,
6070,6181,6082 and other series

Size

Outer diameter

1/2''-100''

Wall thickness

SCH5S-SCHXXS

Length

1000mm,3000mm,5800mm,6000mm,
11800mm,or as required.

Quality control

Mill Test Certification is supplied with shipment,
Third Part Inspection is acceptable.

Surface

Bright, polished, anodized,color coated, painted, etc

Delivery time

1.The products in stock will delivery immediately received the payment.

2.According to the order quantity

Application

cars, ships ,aerospace, aviation, electronics,  agriculture, mechanical
and electrical , home, aluminum tube has been everywhere in our life

Chemical Composition

Grade

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

Zr

Al

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

—

0.25

0.15

—

Balance

Mechanical Properties

Grade

Temper

Wall Thickness(mm)

Tensile Strength(Mpa)

Yield strength(Mpa)

Elongation(%)

6061

T4

All

≥180

≥110

≥16

T6

≤6.3

≥260

≥240

≥8

＞6.3

≥260

≥240

≥10
