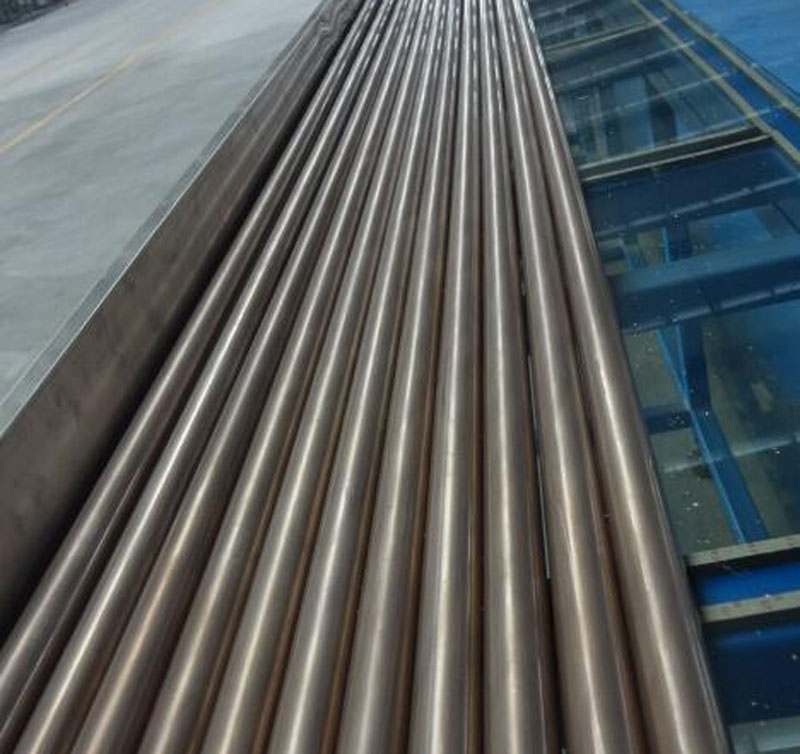

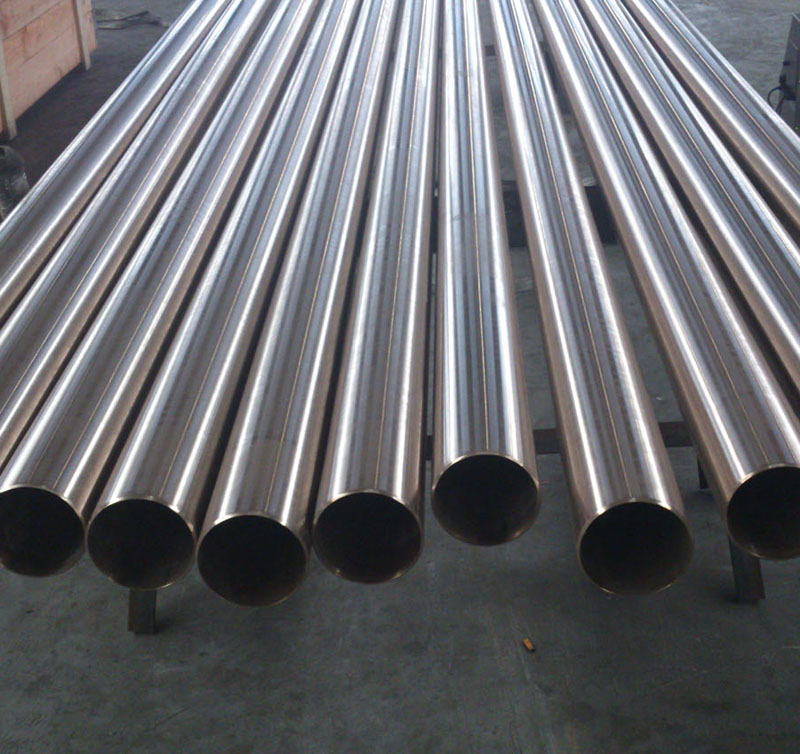

Copper Nickel Tube Symbol:
| Grade | USA | UK | Germany | Japan | ||
| China GB | UNS | EN | DIN | No | JIS | |
| BFe10-1-1 | C70600 | CuNi10Fe1Mn | CW352H | CuNi10Fe1Mn | 2.0872 | C7060 |
Chemical Composition:
| Standard | Chemical Composition | ||||||||||||||
| Cn | Sn | Al | As | Ni | Fe | Mn | Pb | B | P | Si | S | C | Zn | Other | |
| C70600 | Rem | 9.0-11.0 | 1.0-1.8 | 1.0 Max | 0.05Max | 1.0Max | |||||||||
Dimensions:
Outer diameter: 5-350mm
Wall thickness: 0.5-50mm according to the buyers' requirements
Standard: GB/T8890/ASTM B111/JIS H3300/BS EN12451
Application: Copper-Nickel Alloy tube for condenser and heat ex-changers, Water Evaporators, Boiler Blow down Heat Ex changers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed AirInter and After Coolers, Ferrules, Oil Well Pump Liner, and Distiller etc.
