Butt-Welding Tees and Crosses

Inquire Now Next Product

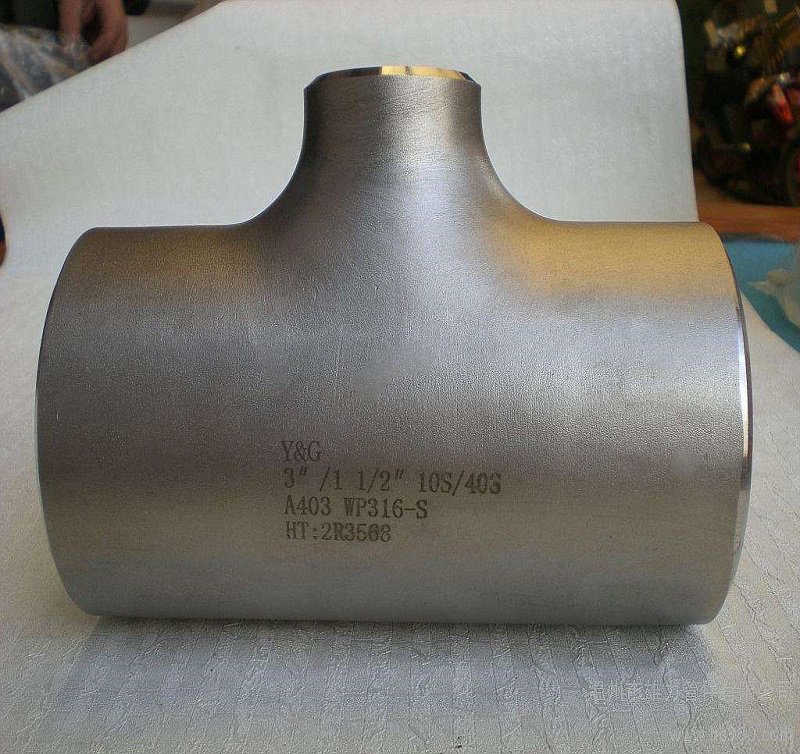

Products Description

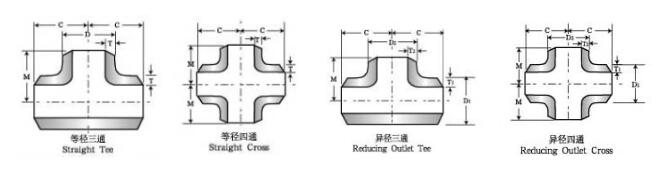

Drawing:

Standard: GB 12459, GB/T 13401, SH 3408, SH 3409, HG/T 21635, HG/T 21631, SY/T 0510, ASME B16.9

公称通径 Nominal Pipe Size		中心至端面 Center to End		公称通径 Nominal Pipe Size		中心至端面 Center to End
DN	NPS	C	M	DN	NPS	C	M
15	1/2	25	25	450	18	343	343
20	3/4	29	29	450x400	18x16		330
20x15	3/4x1/2	29	29	450x350	18x14		330
25	1	38	38	450x300	18x12		321
25x20	1x3/4		38	450x250	18x10		308
25x15	1x1/2		38	450x200	18x8		298
32	11/4	48	48	500	20	381	381
32x25	11/4x1		48	500x450	20x18		368
32x20	11/4x3/4		48	500x400	20x16		356
32x15	11/4x1/2		48	500x350	20x14		356
40	11/2	57	57	500x300	20x12		346
40x32	11/2x11/4		57	500x250	20x10		333
40x25	11/2x1		57	500x200	20x8		324
40x20	11/2x3/4		57	550	22	419	419
40x15	11/2x1/2		57	550x500	22x20		406
50	2	64	64	550x450	22x18		394
50x40	2x11/2		60	550x400	22x16		381
50x32	2x11/4		57	550x350	22x14		381
50x25	2x1		51	550x300	22x12		371
50x20	2x3/4		44	550x250	22x10		359
65	21/2	76	76	600	24	432	432
65x50	21/2x2		70	600x550	24x22		432
65x40	21/2x11/2		67	600x500	24x20		432
65x32	21/2x11/4		64	600x450	24x18		419
65x25	21/2x1		57	600x400	24x16		406
80	3	86	86	600x350	24x14		406
80x65	3x21/2		83	600x300	24x12		397
80x50	3x2		76	600x250	24x10		384
80x40	3x11/2		73	650	26	495	495
80x32	3x11/4		70	650x600	26x24		483
90	31/2	95	95	650x550	26x22		470
90x80	31/2x3		92	650x500	26x20		457
90x65	31/2x21/2		89	650x450	26x18		444
90x50	31/2x2		83	650x400	26x16		432
90x40	31/2x11/2		79	650x350	26x14		432
100	4	105	105	650x300	26x12		422
100x90	4x31/2		102	700	28	521	521
100x80	4x3		98	700x650	28x26		521
100x65	4x21/2		95	700x600	28x24		508
100x50	4x2		89	700x550	28x22		495
100x40	4x11/2		86	700x500	28x20		483
125	5	124	124	700x450	28x18		470
125x100	5x4		117	700x400	28x16		457
125x90	5x31/2		114	700x350	28x14		457
125x80	5x3		111	700x300	28x12		448
125x65	5x21/2		108	750	30	559	559
125x50	5x2		105	750x700	30x28		546
150	6	143	143	750x650	30x26		546
150x125	6x5		137	750x600	30x24		533
150x100	6x4		130	750x550	30x22		521
150x90	6x31/2		127	750x500	30x20		508
150x80	6x3		124	750x450	30x18		495
150x65	6x21/2		121	750x400	30x16		483
200	8	178	178	750x350	30x14		483
200x150	8x6		168	750x300	30x12		473
200x125	8x5		162	750x250	30x10		460
200x100	8x4		156	800	32	597	597
200x90	8x31/2		152	800x750	32x30		584
250	10	216	216	800x700	32x28		572
250x200	10x6		203	800x650	32x26		572
250x150	10x6		194	800x600	32x24		559
250x125	10x5		191	800x550	32x22		546
250x100	10x4		184	800x500	32x20		533
300	12	254	254	800x450	32x18		521
300x250	12x10		241	800x400	32x16		508
300x200	12x8		229	800x350	32x14		508
300x150	12x6		219	850	34	635	635
300x125	12x5		216	850x800	34x32		622
350	14	279	279	850x750	34x30		610
350x300	14x12		270	850x700	34x28		597
350x250	14x10		257	850x650	34x26		597
350x200	14x8		248	850x600	34x24		584
350x150	14x6		238	850x550	34x22		572
400	16	305	305	850x500	34x20		559
400x350	16x14		305	850x450	34x18		546
400x300	16x12		295	850x400	34x16		533
400x250	16x10		283
400x200	16x8		273
400x150	16x6		264
