Air Heat Exchanger Manufacturer With Tube and Shell Heater Exchanger

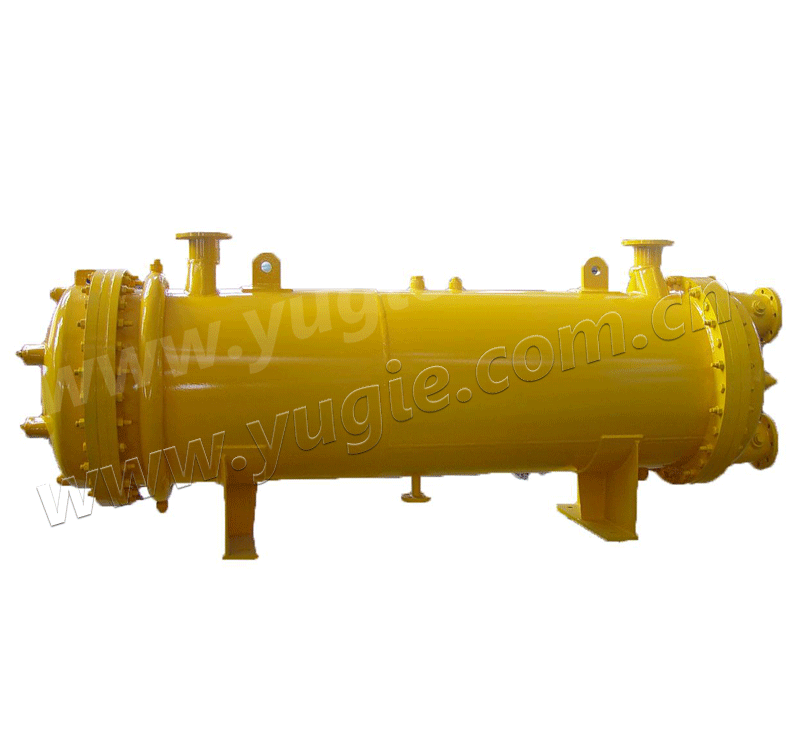

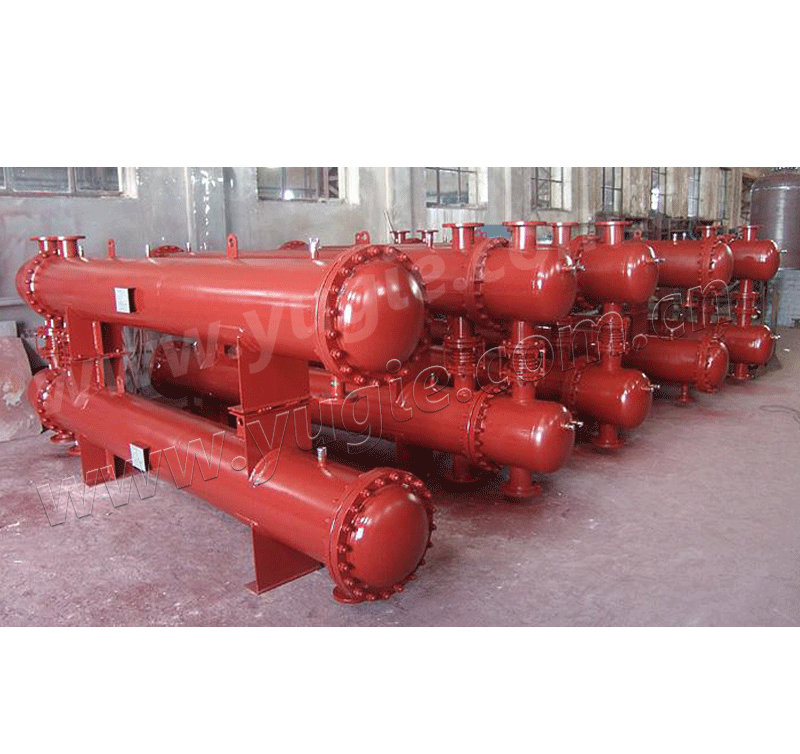

Shell & tube heat exchangers
Shell and tube heat exchanger is one of the most typical partition type heat exchangers. It has a long history of application in industry and lays a dominant position among all heat exchangers until now.
The Shell & tube heat exchangers symbolize another important area of our production.
We have built coolers with various types and sizes. The field of application are numerous: chemical, energy, power generation, petrochemical and industrial sectors.
The bundles may consist of tubes smooth or finned( type trufin), straight or bent U-shaped, welded or expanded to tube plates.
Construction types:
---removable cover headers
---fixed tube bundle
Main materials:
carbon steel and low alloy steels, stainless steels, super stainless steels or austenitic ferritic, such as duplex, super duplex, copper, nyckel and aluminum alloys.
Shell and tube heat exchanger is one of the most typical partition type heat exchangers. It has a long history of application in industry and lays a dominant position among all heat exchangers until now.
Product Characteristics
A. High heat transfer
B. Wide scope of application
C. Applicable to various complications
D. Compact in structure, small in size
E. Convenient for maintenance and repair
Applicable Scope
The series is applicable to industries of chemical, petrochemical power, papermaking, glass, and pharmacy needing heat exchange as well as those of civil, defense, and atomic energy, etc.
| FIN TUBE REFERENCE | |||||||
| TYPE | NAME | BARE TUBE | FIN TUBE | BARE TUBE | FIN SPECIFICATION (MM) | ||
| MATERIAL | MATERIAL | DIAMETER | FIN PITCH | FIN HEIGHT | FIN THICK | ||
| EMBEDDED | G-TYPE FIN TUEB | CARBON STEEL | ALUMINUM | 16-63 | 2.1-5 | <17 | ~0.4 |
| COPPER,STAINLESS STEEL,ALLOY | |||||||
| EXTRUDED | SINGLE METAL | CARBON STEEL, COPPER | COPPER | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
| COMBINED METAL | STAINLESS STEEL,ALLOY | ALUMINUM | |||||
| LOW FIN TUBE | CARBON STEEL, COPPER | / | 10-38 | 0.6-2 | <1.6 | ~0.3 | |
| T-TYPE FIN TUBE | STAINLESS STEEL,ALLOY | ||||||
| BAMBOO TUBE | CARBON STEEL,COPPER | / | 16-51 | 8-30 | <2.5 | / | |
| CORRUGATED TUBE | STAINLESS STEEL | ||||||
| WOUND | L/KL/LL TYPE | CARBON STEEL, COPPER | COPPER | 16-63 | 2.1-5 | <17 | ~0.4 |
| FIN TUBE | STAINLESS STEEL,ALLOY | ALUMINUM | |||||
| STRING | STRING FIN TUBE | ALUMINUM,COPPER | ALUMINUM,COPPER | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| CARBON STEEL | CARBON STEEL | ||||||
| STAINLESS STEEL | STAINLESS STEEL | ||||||
| U-TYPE | U-TYPE TUBE | CARBON STEEL,COPPER | / | 16-38 | / | / | / |
| STAINLESS STEEL | |||||||
| WELDING | HF-WELDING | CARBON STEEL, ALLOY | CARBON STEEL, ALLOY | 16-219 | 3-25 | 5-30 | 0.8-3 |
| FIN TUBE | STAINLESS STEEL | STAINLESS STEEL | |||||
| H/HH TYPE | CARBON STEEL, ALLOY | CARBON STEEL, ALLOY | 25-63 | 8-30 | <200 | 1.5-3.5 | |
| FIN TUBE | STAINLESS STEEL | STAINLESS STEEL | |||||
| STUDED FIN TUBE | CARBON STEEL, ALLOY | CARBON STEEL, ALLOY | 25-219 | 8-30 | 5-35 | Φ5-20 | |
| STAINLESS STEEL | STAINLESS STEEL | ||||||
We are specialized in providing various types of heat exchange equipment. If you have any requirements,
please send us an email: yana@263.net ,
we will provide services for you according to your needs!
