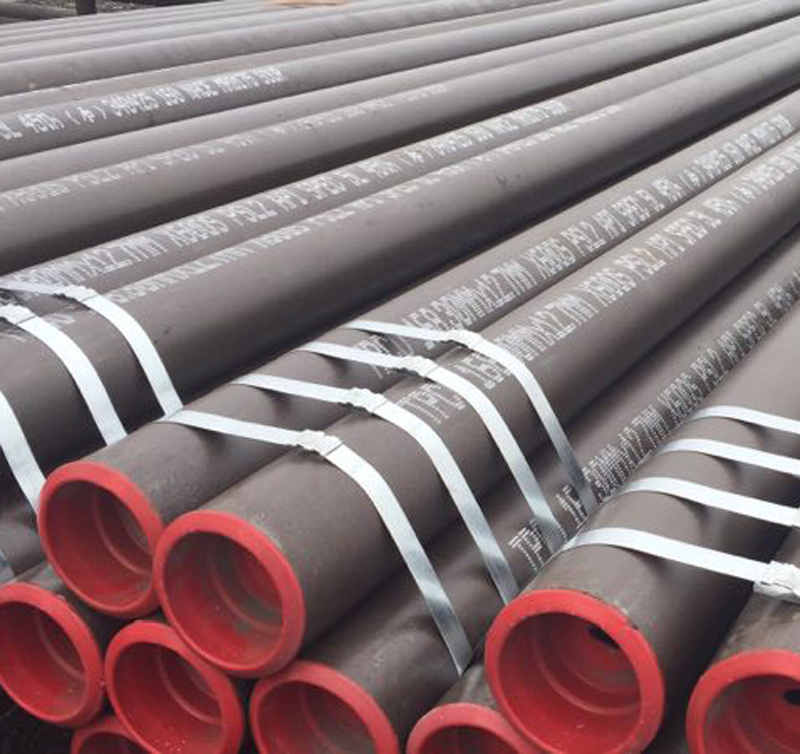

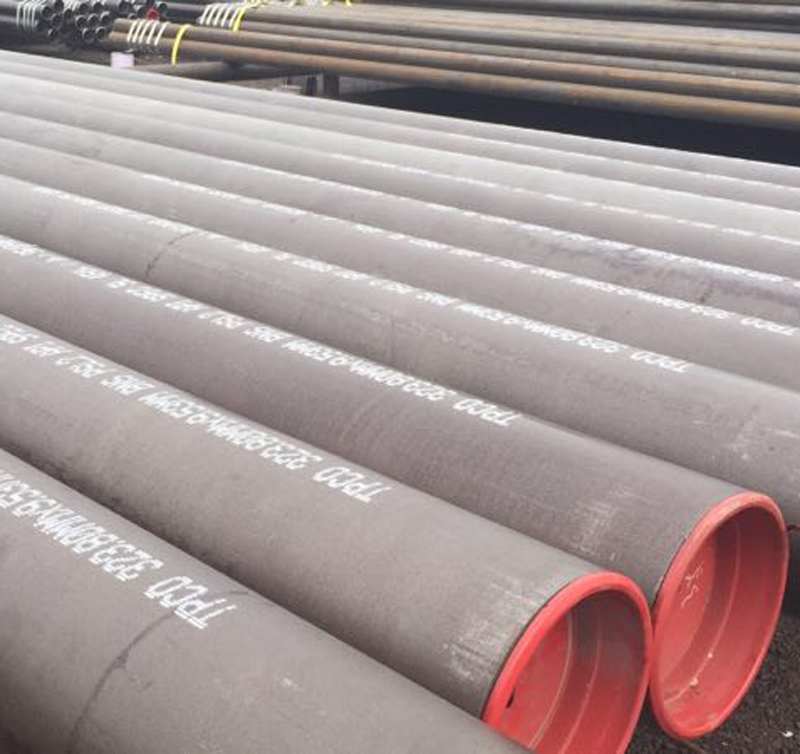

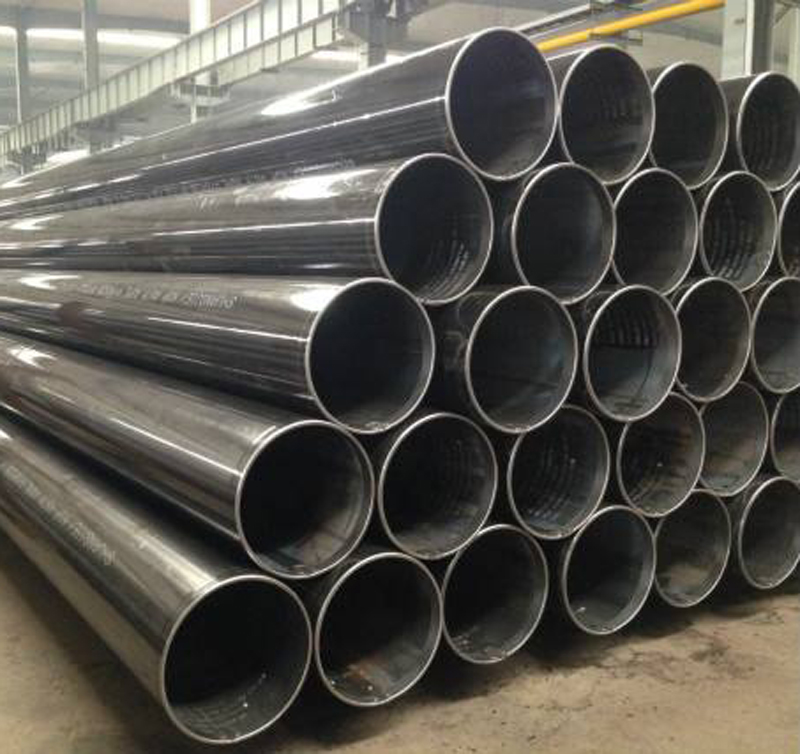

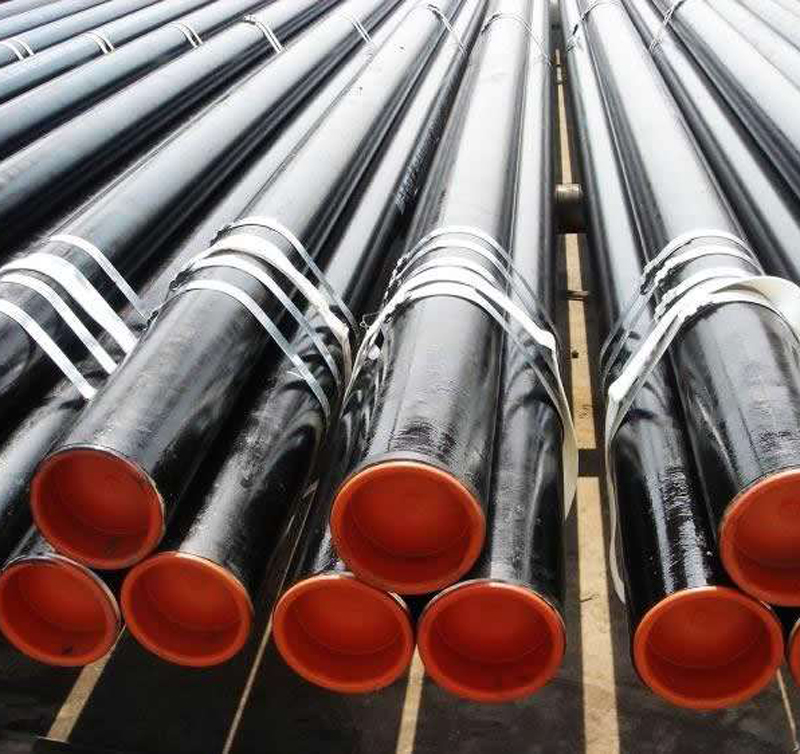

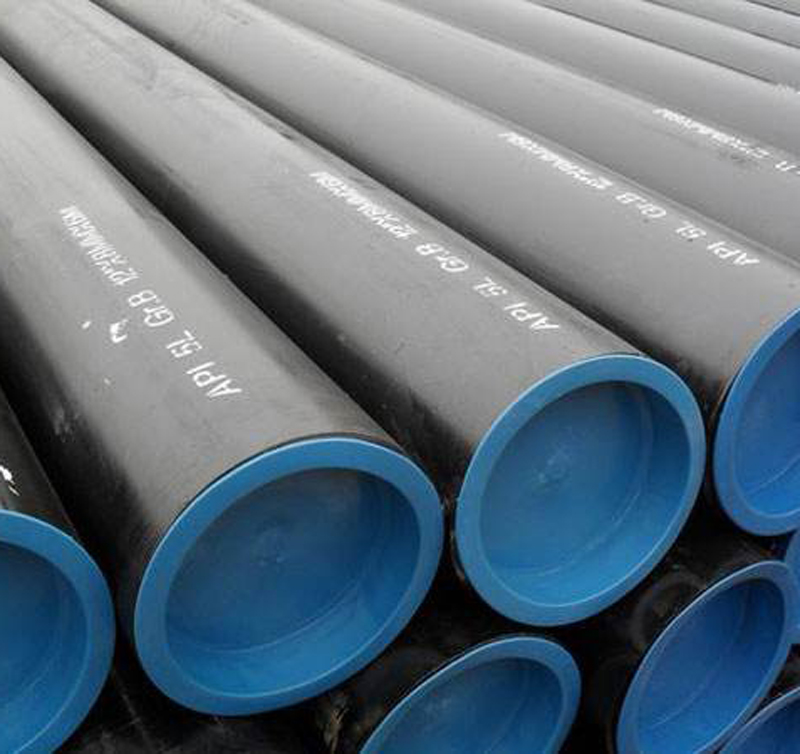

Line Pipe

Inquire Now Next Product

Products Description

Standard: ASTM A53-B, ASTM A106-B, ASME, API-5L

Grades: API 5L B, X52, X60, X65, X70

Specification Level: PSL-1, PSL-2

Size Range: 10.29 mm to 609mm.

Application: This is steel pipe for pipeline transportation systems in the petroleum and natural gas industries. API 5L is suitable for conveying gas, water, and oil.

NPS IN	OD MM	Sch10	Sch20	Sch30	STD	Sch40	Sch60	Sch80	XS	Sch100	Sch120	Sch140
1/8	10.29	-	-	-	1.73	1.73	-	2.41	2.41	-	-	-
1/4	13.72	-	-	-	1.73	1.73	-	3.02	3.02	-	-	-
3/8	17.14	-	-	-	2.31	2.31	-	3.2	3.2	-	-	-
1/2	21.34	-	-	-	2.77	2.77	-	3.73	3.73	-	-	-
3/4	26.67	-	-	-	2.87	2.87	-	3.91	3.91	-	-	-
1	33.4	-	-	-	3.38	3.38	-	4.55	4.55	-	-	-
1 1/4	42.16	-	-	-	3.56	3.56	-	4.85	4.85	-	-	-
1 1/2	48.26	-	-	-	3.68	3.68	-	5.08	5.08	-	-	-
2	60.32	-	-	-	3.91	3.91	-	5.54	5.54	-	-	-
2 1/2	73.02	-	-	-	5.16	5.16	-	7.01	7.01	-	-	-
3	88.9	-	-	-	5.49	5.49	-	7.62	7.62	-	-	-
3 1/2	101.6	-	-	-	5.74	5.74	-	8.08	8.08	-	-	-
4	114.3	-	-	-	6.02	6.02	-	8.56	8.56	-	11.12	-
5	141.3	-	-	-	6.55	6.55	-	9.53	9.53	-	12.7	-
6	168.3	-	-	-	7.11	7.11	-	10.97	10.97	-	14.27	-
8	219.1	-	6.35	7.04	8.18	8.18	10.31	12.7	12.7	15.09	18.26	20.62
10	273.1	-	6.35	7.8	9.27	9.27	12.7	12.7	12.7	18.26	21.44	25.4
12	323.9	-	6.35	8.38	9.52	10.3	14.27	12.7	12.7	21.44	25.4	28.58
14	355.6	6.35	7.92	9.52	9.52	11.13	15.09	12.7	12.7	23.83	27.79	31.75
16	406.4	6.35	7.92	9.52	9.52	12.7	16.66	12.7	12.7	26.19	30.96	36.52
18	457.2	6.35	7.92	11.12	9.52	14.27	19.05	12.7	12.7	29.36	34.92	39.47
20	508	6.35	7.92	12.7	9.52	15.09	20.62	12.7	12.7	32.54	38.1	44.45
22	558.8	6.35	7.92	12.7	9.52	-	22.22	12.7	12.7	34.92	41.28	47.62
24	609.6	6.35	7.92	14.27	9.52	17.48	24.61	12.7	12.7	38.89	46.02	52.37
