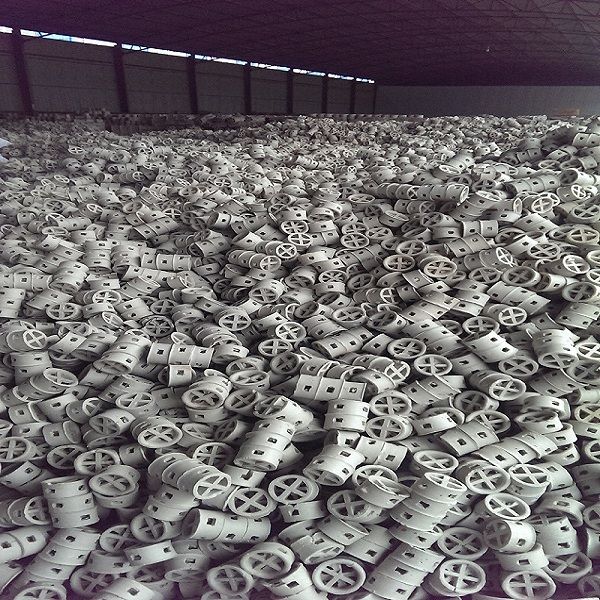

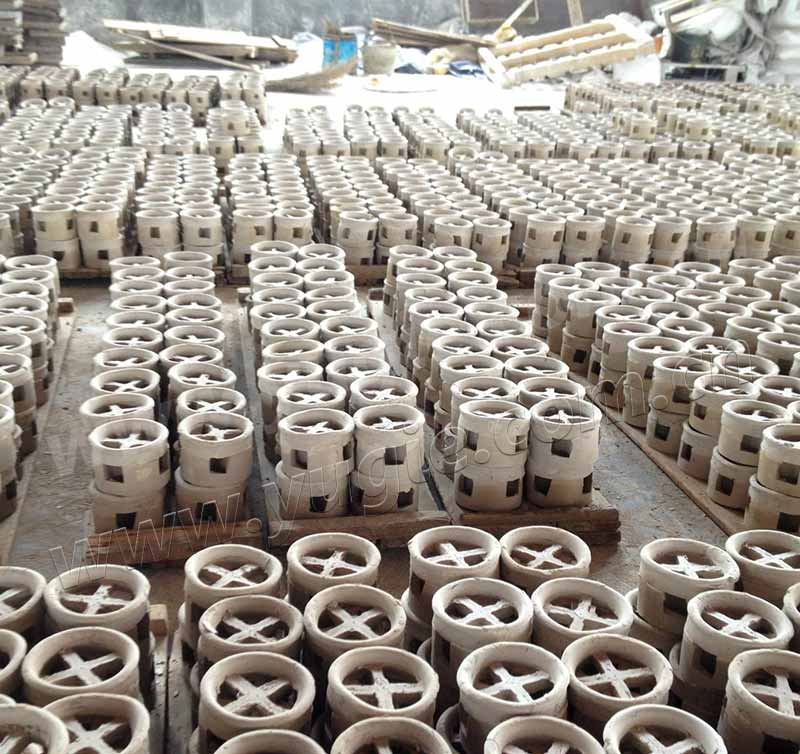

Ceramic Cascade Mini Ring high-performance random packings provide significant capacity advantages and lower pressure drop than other random packings. These high-performance random packings have consistently demonstrated capacity improvements of up to 15% in a variety of applications without loss of efficiency. Superior mechanical integrity allows processors to specify deep beds without packing deformation. Both high performance packings are available in several sizes and virtually any metallic material. Cascade Mini Ring random packings are the most advanced random packing designs offered today.
Specifications of Ceramic Cascade Mini Ring:
| Diameter | Size (mm) | Surface Area (m2/m3) | Void (%) | Number (pcs/m3) | Bulk density (kg/m3) | Dry packing (factor m-1) |
| 1" | 25×15×3 | 210 | 73 | 72000 | 650 | 540 |
| 1.5" | 38×23×4 | 153 | 74 | 21600 | 630 | 378 |
| 2" | 55×30×5 | 102 | 76 | 9100 | 580 | 232 |
| 3" | 76×46×9 | 75 | 78 | 2500 | 530 | 158 |
