Ceramic Saddles

Inquire Now Next Product

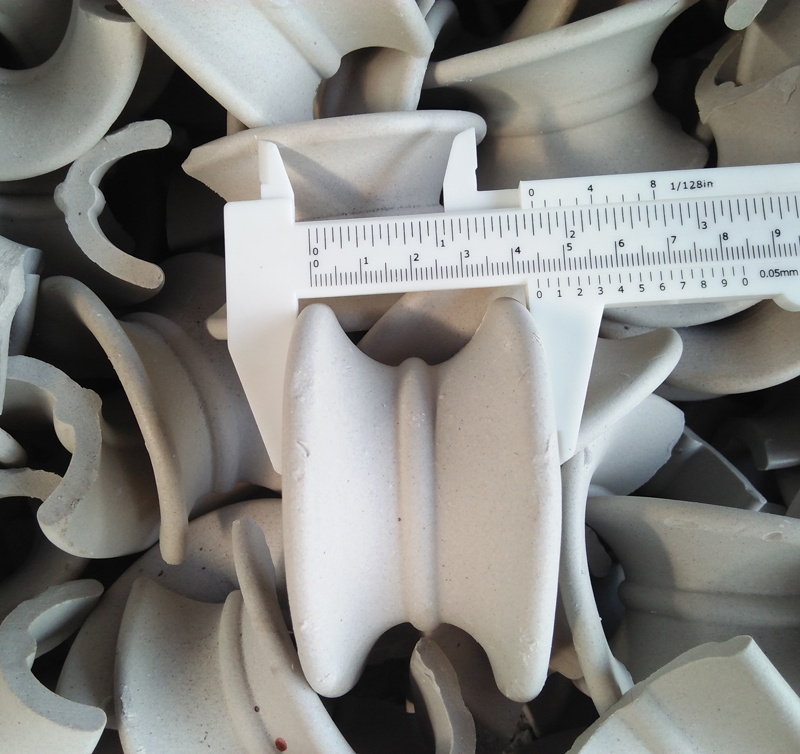

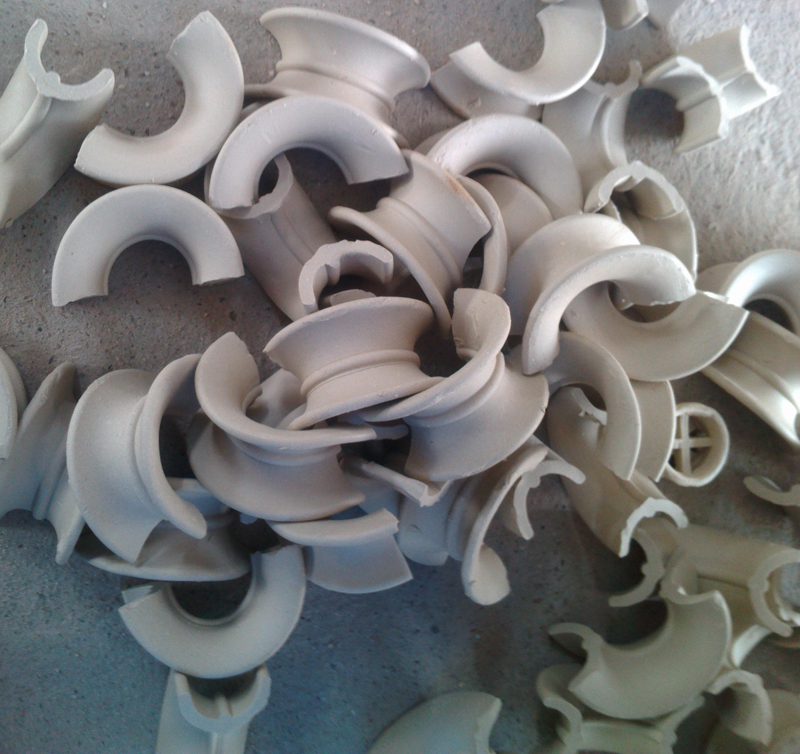

Ceramic Saddles (equivalent to Koch-Glitsch CERAMIC INTALOX SADDLES ) are between the ring shape and the shape of the saddle, and therefore maintain both their advantages, this structure is conducive to the liquid gas distribution. Ceramic saddles are most frequently used high-performance packing and exhibit advantages for most applications in comparison with other shapes. Their smooth surface imparts a high chemical resistance and provides with a high level of stability. Due to their simple form, ceramic saddles can be manufactured by continuous extrusion method and can be produced at a relatively low cost.

Applications: Ceramic Saddles are widely used in Scrubbers, Drying Towers, Tail Gas Scrubbers, Impasse Towers, absorption tower, cooling tower, scrubber, regeneration tower. Also widely used as heat transfer media inRegenerative Thermal oxidizers(RTO).

Specification :

Diameter	Size (mm)	Surface Area (m2/m3)	Void (%)	Number (pcs/m3)	Bulk density (kg/m3)	Dry packing (factor m-1)
16	16X12X2.0	450	70	382000	710	1311
25	25X19X3.0	250	74	84000	610	617
38	38X30X4.0	164	75	25000	590	389
50	50X40X5.0	142	76	9300	560	323
76	76X57X9.0	92	78	1800	520	194
