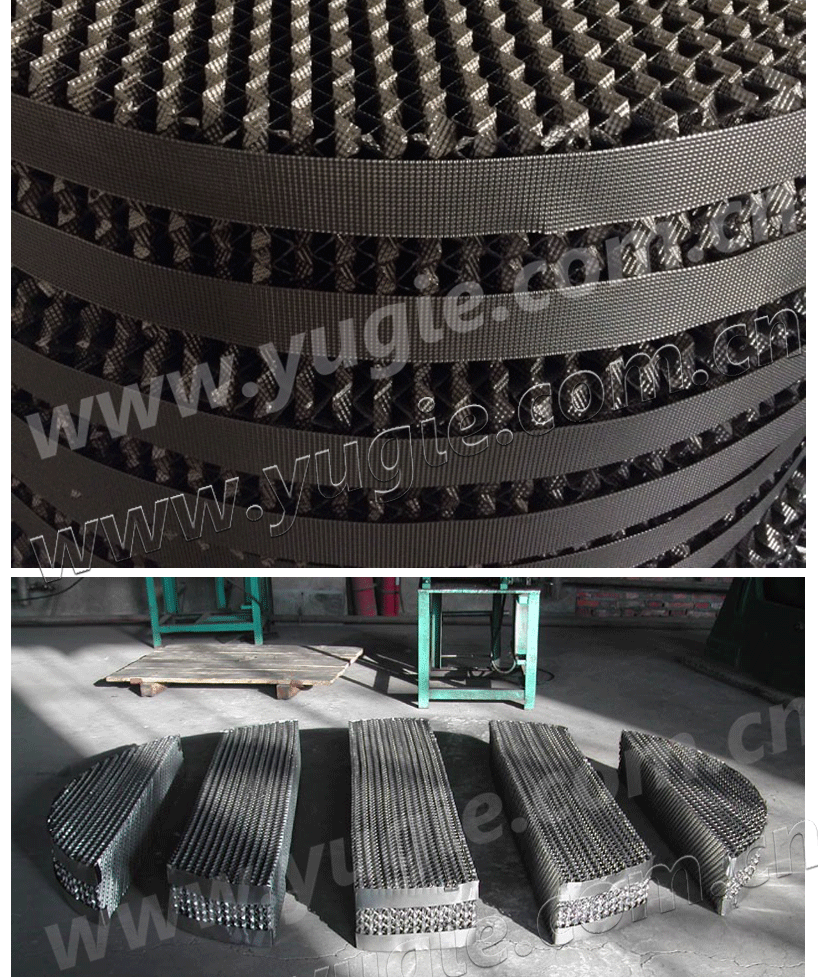

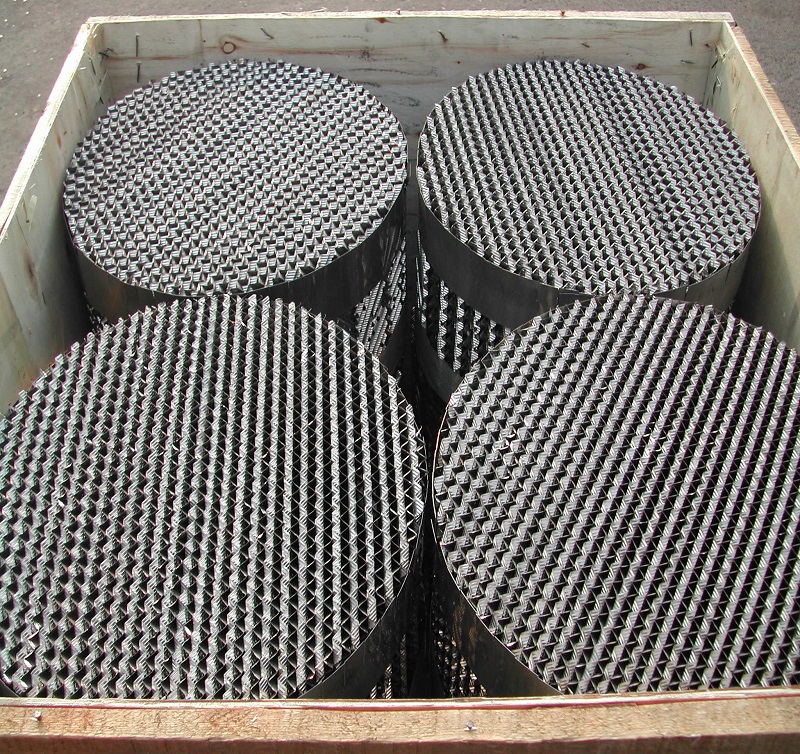

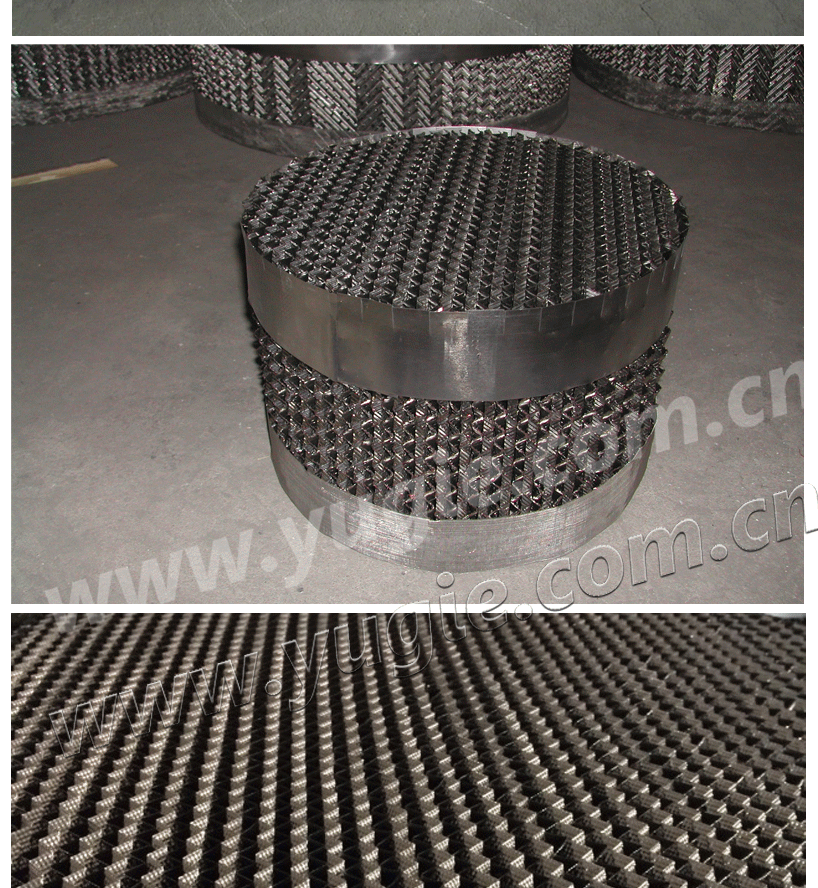

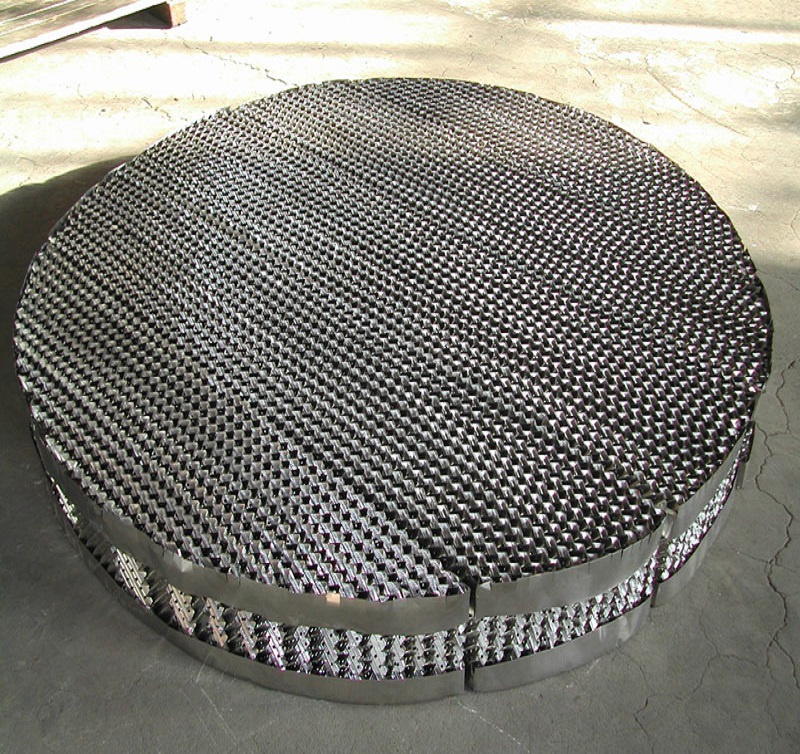

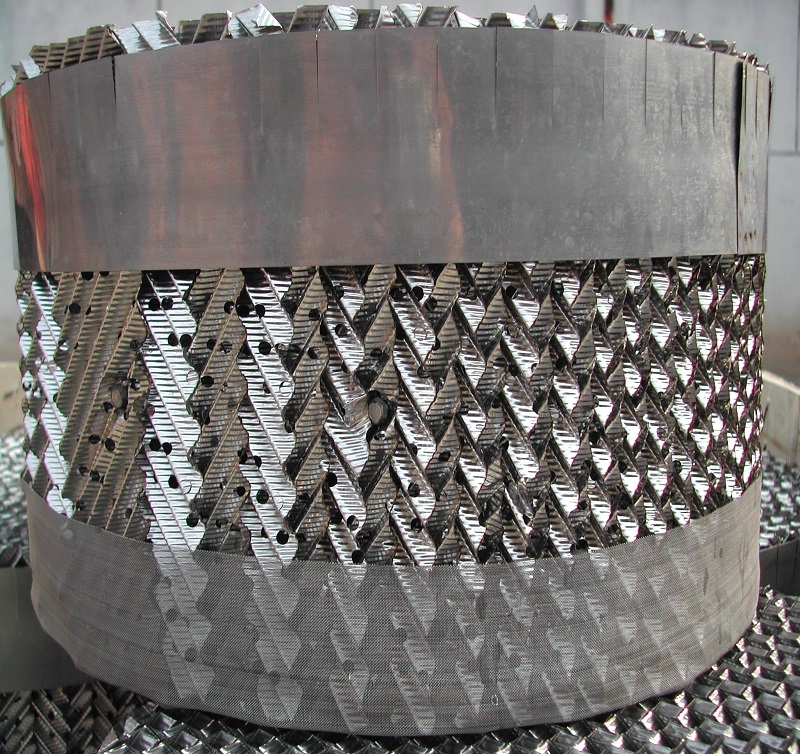

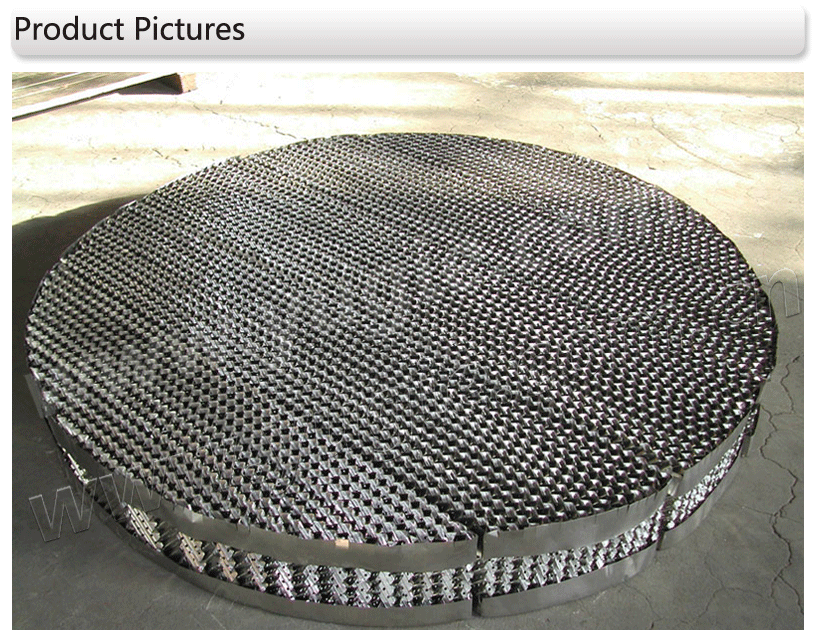

Orifice corrugated packing is clear and neat filling assembled and small and large corrugation rolled on basis thin board surficial holes. It has characteristics such as small resistance, even gas and liquid distribution, high efficiency, large flow rate and unremarkable magnifying effects etc. It's applied to negative pressure, normal pressure and pressurization operation.
TYPE | Peak heigh tmm | Surface Area (m2/m3) | theoretical plate number 1/m | Void (%) | (Pressure Drop) Mpa/m | Dry packing m/s (kg/m3)0.5 |
MP-1 | 24 | 125 | 1-1.2 | 98.5 | 1.5×10-4 | 3 |
MP-2 | 12 | 250 | 2-3 | 97 | 1.52×10-4 | 2.6 |
MP-3 | 8 | 350 | 3.5-4 | 95 | 1.5×10-4 | 2 |
MP-4 | 6.5 | 450 | 4-4.5 | 93 | 1.8×10-4 | 1.5 |
