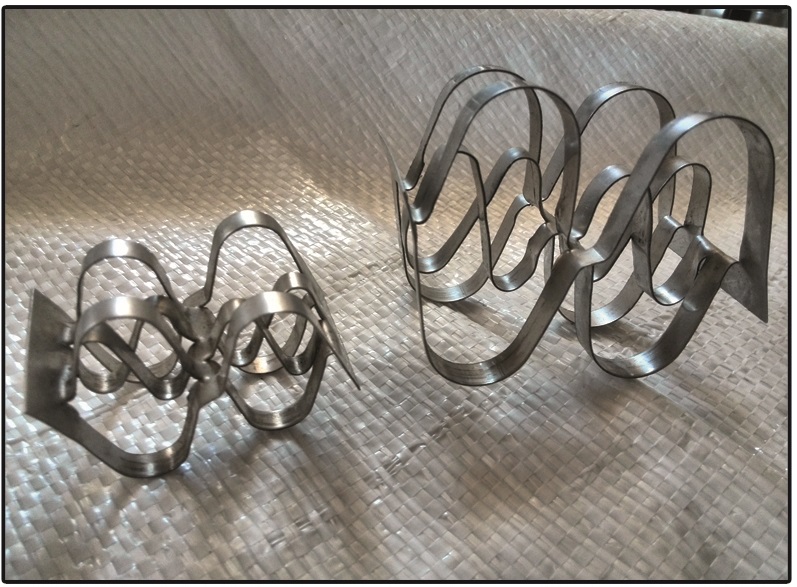

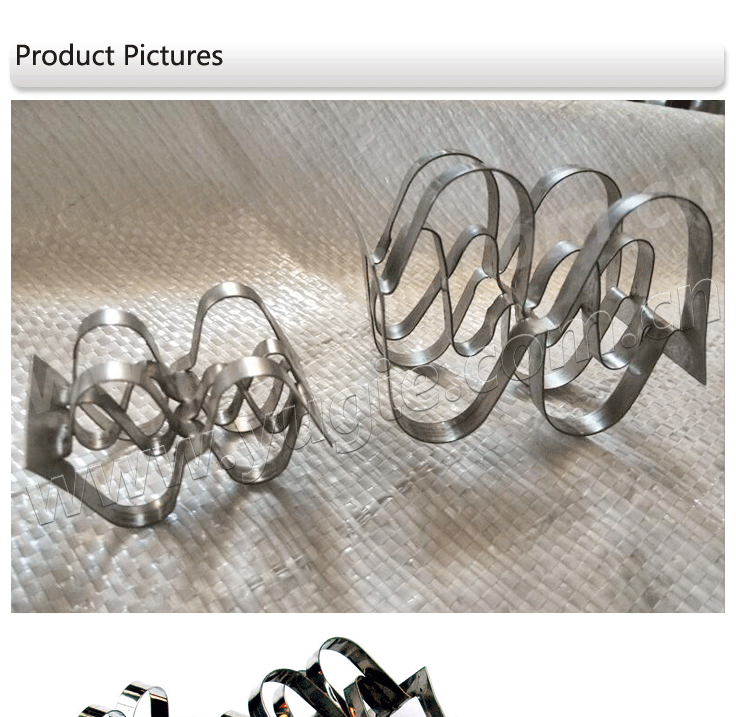

Double Metal Conjugate Ring is also called Super Metal Raschig ring, Raschig ring, the product compared with other traditional media has a load capacity of more than 33%, almost 67% for low pressure drop increase the separation efficiency of more than 12%. As a result of the energy and reduce the cost of investment. The product can be widely used as direct replacement Raschig ring packing.
Super Metal Raschig Ring has thin wall, heat resistance, large gap, high flux, low resistance, high separation efficiency. Especially in the vacuum distillation tower, temperature, easy decomposition, easily polymerized, carbon materials. Thus widely used in petrochemical, fertilizer, environmental protection and other industries in the packed tower.
Specification:
| Mechanical Data of Various Metal Super Raschig Ring | |||
| Size(mm) | Number Per M3 | SurfaceM2/M3 | Free Volume(%) |
| 15 | 180000 | 315 | 96 |
| 20 | 145000 | 250 | 97 |
| 25 | 46500 | 180 | 98 |
| 30 | 32000 | 150 | 98 |
| 38 | 13750 | 120 | 98 |
| 50 | 9500 | 100 | 98 |
| 70 | 4300 | 80 | 98 |
